FKA 109 - Ohlins - Adventure Cartridge Kit - Desert Sled

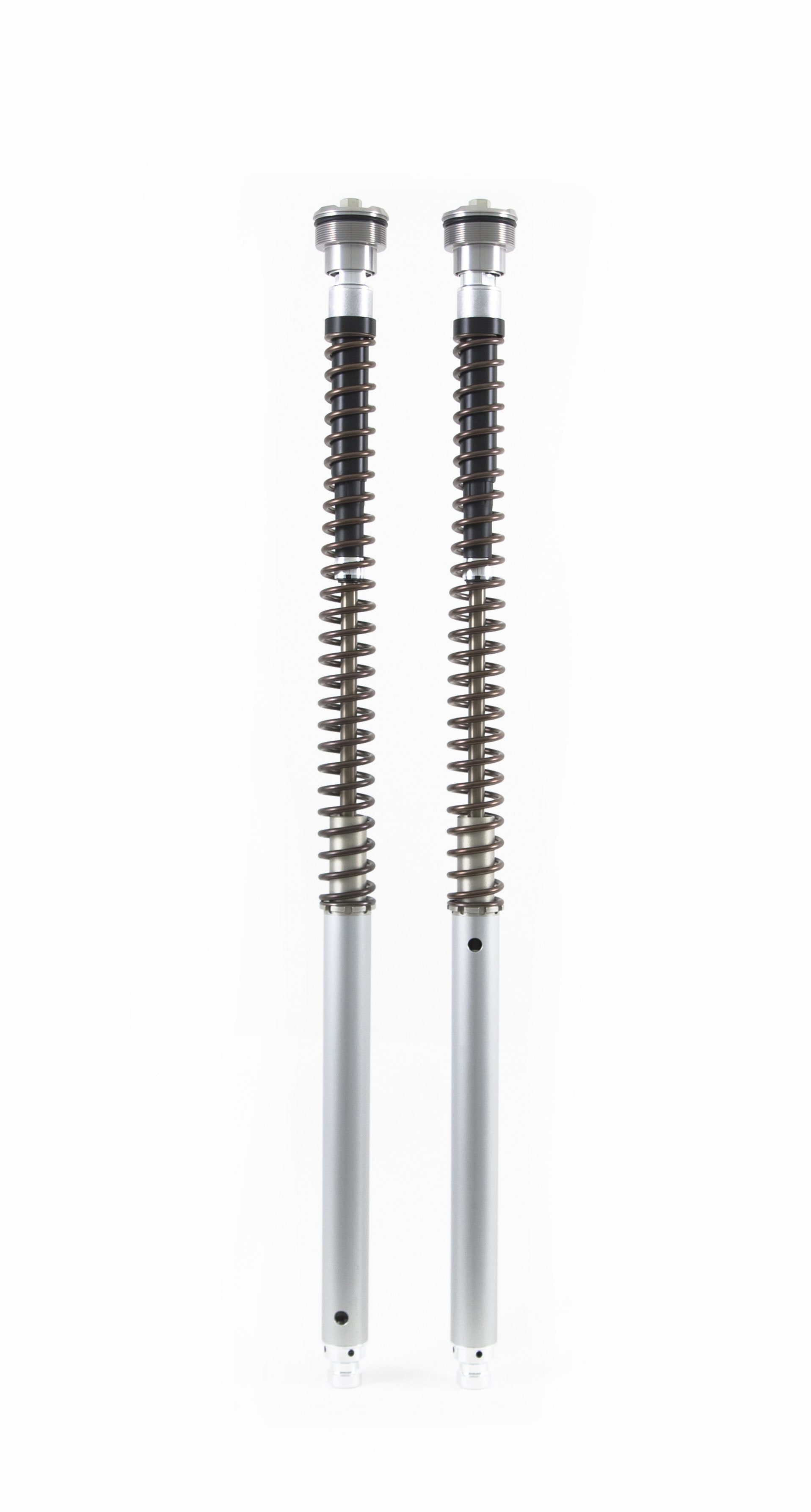

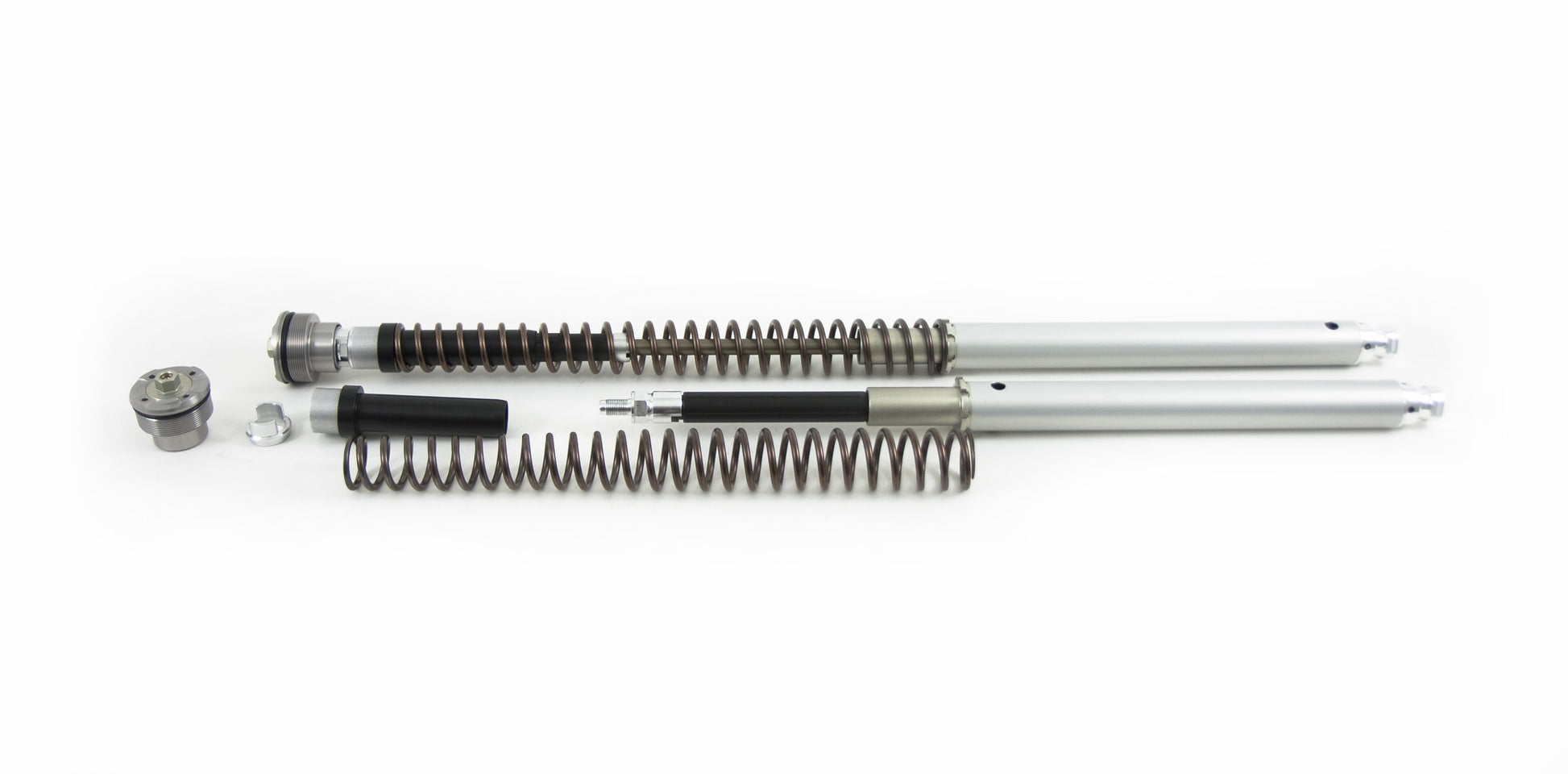

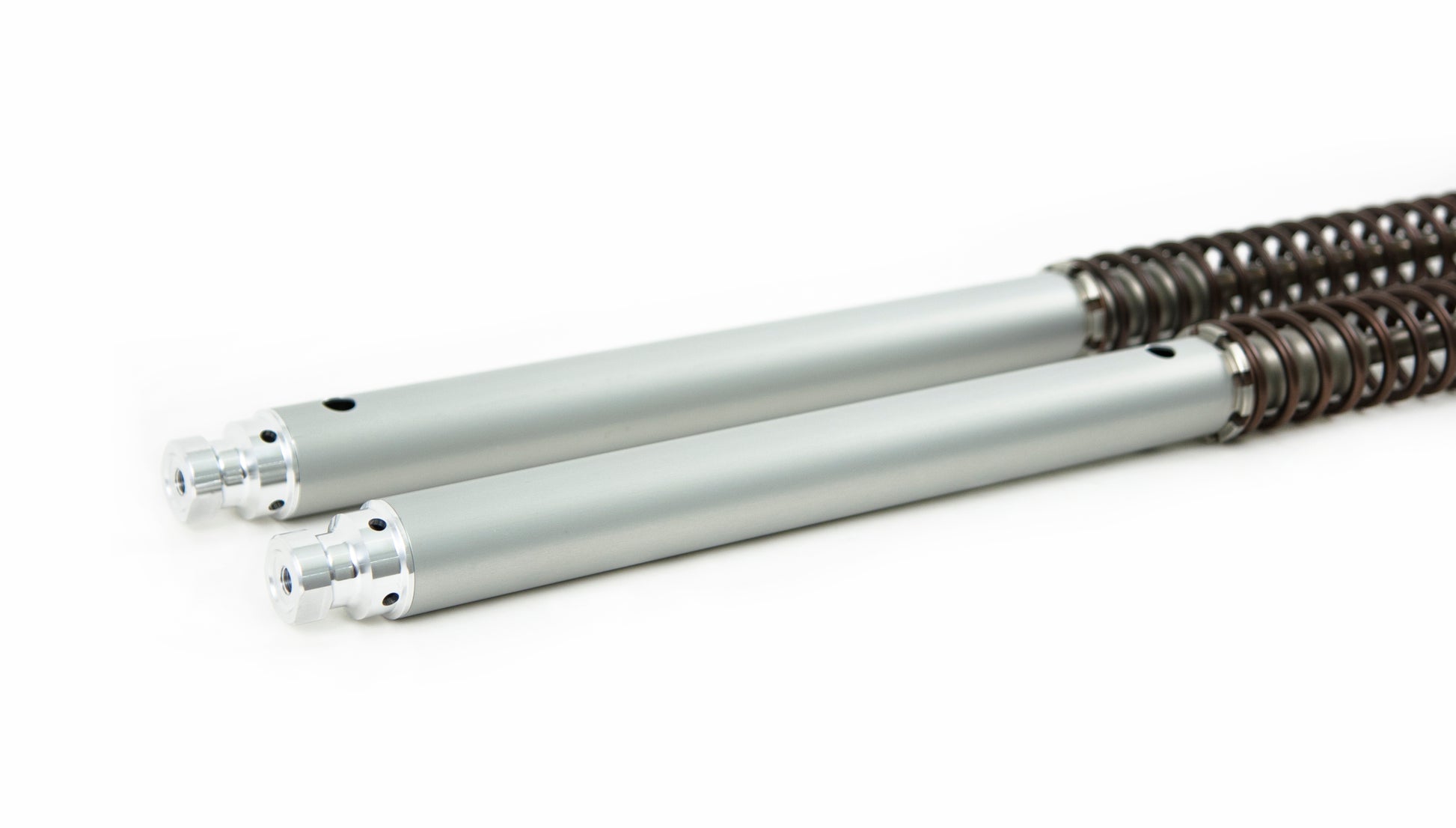

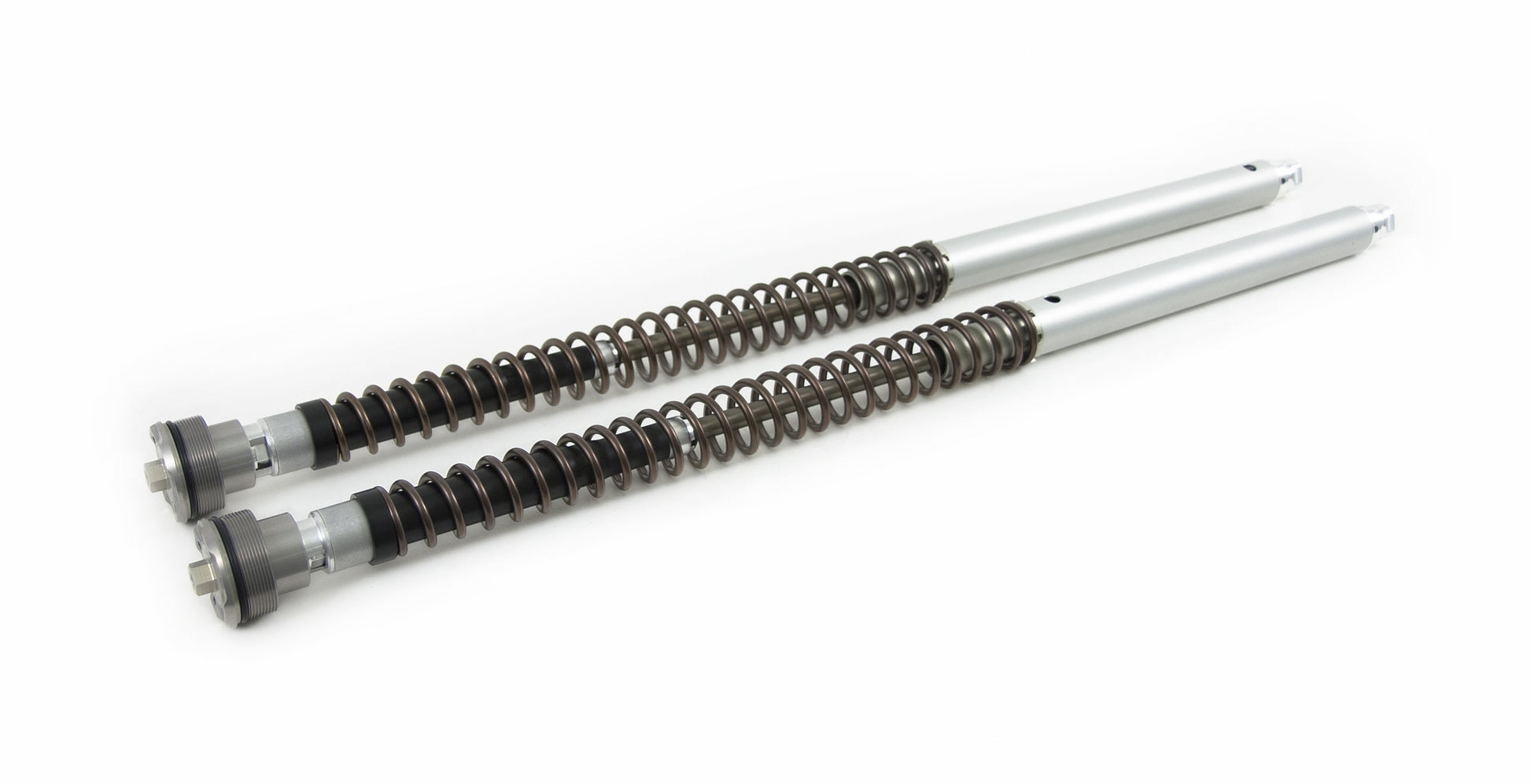

Ohlins FKA 109 Adventure Cartridge Kit

2017 - 2020 Ducati Scrambler 800 Desert Sled

Based on the successful road racing front fork technology, the FKA 100-series fully adjustable cartridge kit offers improved comfort and performance. Based on the technology from Öhlins road racing cartridge kits, the front fork kit features our well proven NIX damping system, keeping compression and rebound damping separated, each confined to one fork leg. Among the advantages with this design is the improved stability and control of the damping system, as well as ease of use as all the adjusters, both for compression and rebound damping as well as spring preload, is located at the top of each fork leg. Different springs are available to cope with individual requirements, as well as an effective hydraulic stop inside the cartridge to prevent bottoming. The compact design of the NIX cartridge means it will easily fit inside the upside-down original front forks of most medium sized adventure bikes. They are easy to install as well. Just pop out the old innards of the fork and install the Öhlins cartridges. Then you won’t have to bother for a long while, as the cartridge is designed to withstand hard use for extended periods of time without servicing. Fast gravel roads on a weekend or piloting around narrow trails to find that perfect stopover for the night – now you can do it with complete control over your bike. Kits are available for a number of bikes, among them BMW F800GS and Triumph Tiger 800/800XC – check our application list for the latest updates.

Specs

• Öhlins NIX Techonology

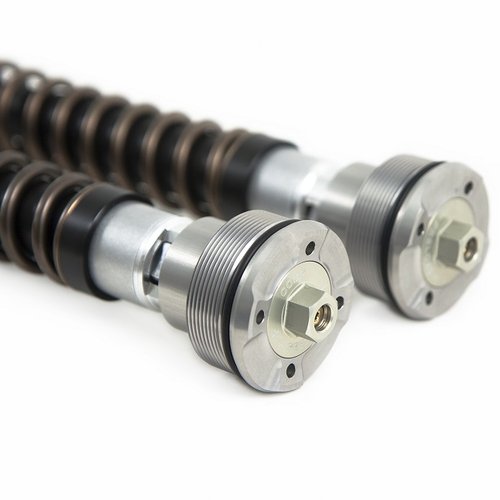

• Fully adjustable from the top cap
• Rebound in one leg, compression in the other leg
• New hydraulic stop to prevent hard bottoming
• Easy to install and service
• Different spring rates available

NOTE: Kit does NOT include springs.  Please see our listing for 08416 Series springs to order the spring for this kit.

PLEASE CONSULT WITH YOUR SUSPENSION TUNER OR CONTACT US FOR SPECIFIC RECOMMENDATIONS.
